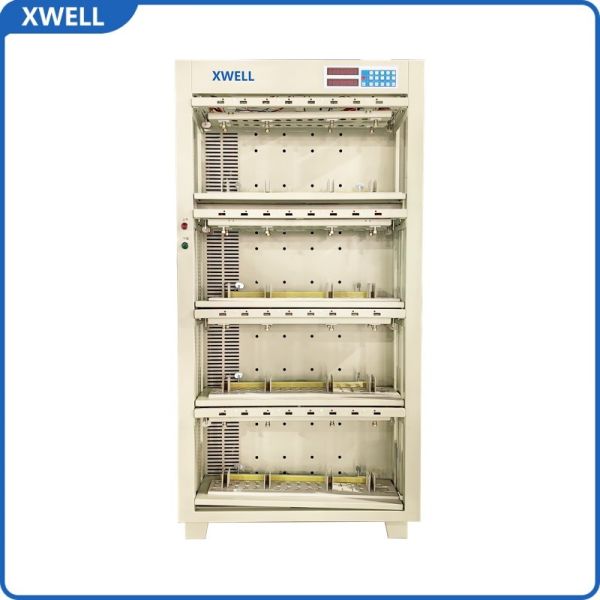

32 Channel 5V 120A Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

Name: 32 Channel 5V 120A Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester
Brand: XWELL
Price: 4000 USD

Brand Name : XWELL

Model Number : XW-5V120A32CH

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : $4000-$6000

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100PCS a month

Delivery Time : 7-15days

Packaging Details : wooden case

Warranty : 1

Brand : XWELL

Current range : 120A

voltage : 5V

Contact Now

32 Channel 5V 120A Capacity Grading Machine For Prismatic Cell Battery Life Discharge Charge Tester

Product overview:

1. Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions,
stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.

2.Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency,
flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the
maintenance and upgrades are good for expansion.

Software function

A) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
B) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage
and other data;
C) Set operator authority and operate in different levels;
E) Display charge discharge curve and cycle chart;
(We can provide 5V 2A 3A 5A 6A 512 Channel Battery Charging and Discharging Machine according to your request.)

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery
